Air Compressor

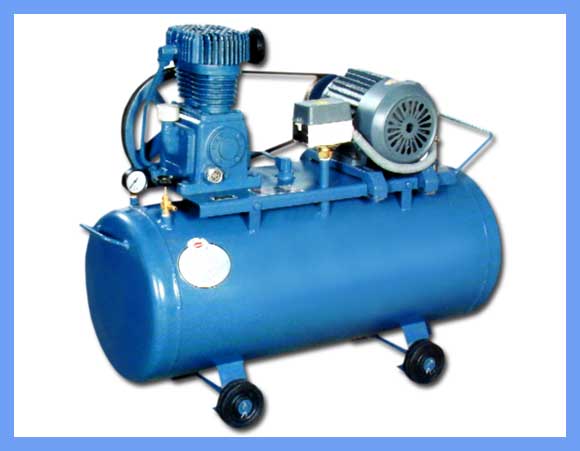

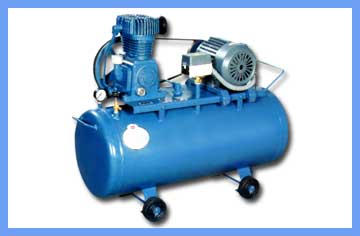

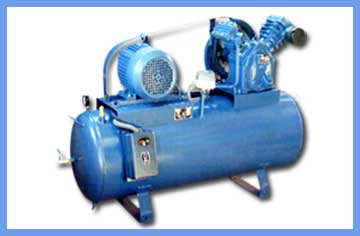

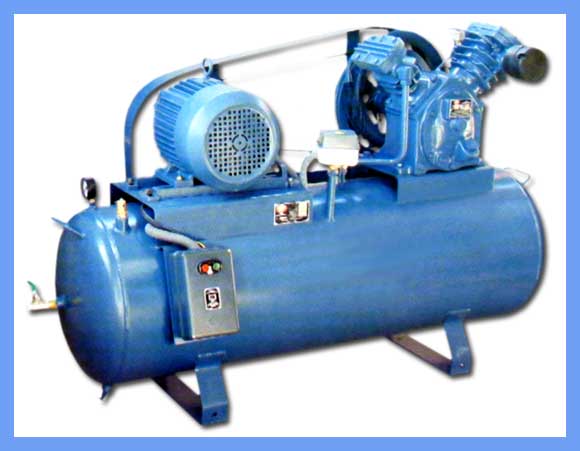

Air Compressor In Various Ranges And Tyres
Model No.	Motor HP.	No. of Cylinder	R. P. M.	Bore Stroke mm.	Piston Displacement C. F. M.	Max Working Pressor		Tank Size Inch	Tank Capacity ltrs.	Approx Weight W/o Motors Kgs.
						Pst.	Kg/cm2
SE-1	0.25	1	750	50.8×37.35	2.00	60	4	8×20	16	25
SE-2	0.33	1	950	50.8×37.35	2.50	70	5	10×22	28	30
SE-3	0.50	1	750	56.9×41.97	2.80	100	7	10×28	36	40
SE-4	1.00	1	750	63.5×41.97	3.50	125	8	12×32	60	50
SE-5	1.00	2	700	50.8×50.80	5.00	125	8	12×12	60	65
SE-7	2.00	1	750	77.575×63.982	7.80	130	9	16×40	132	95
SE-8	2.00	2	700	63.5×67.995	10.30	130	9	16Ý40	132	110
SE-9	3.00	1	700	98.425×59.65	11.30	150	10	18×48	200	150
SE-10	3.00	2	800	63.5×67.995	12.15	150	10	18×48	200	180
SE-11	5.00	2	640	76.20×88.90	18.00	170	12	18×48	200	180
SE-12	7.50	2	640	90×115	32.00	200	14	20×54	278	250

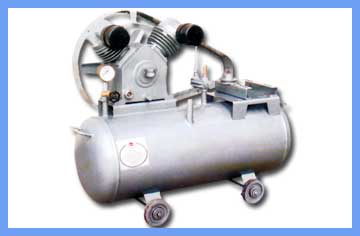

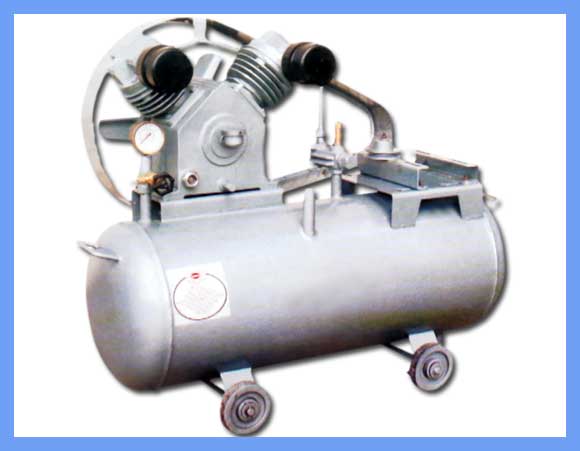

V Tyre Air Compressor
SET-6	1.50	2	700	57×50	6.30	130	9	14×32	80	80
SET-8	2.00	2	700	63×50	9.00	130	9	16×40	132	125

Model No.	Motor HP	No. of Cylinder	Bore × Stroke Inch	C.F.M.	Working PSI	Tank Size Inch
SET-34	3	2	3' & 13"×2 3/4"	9.79	80 to 120	16 × 50
SET-42	5	2	4" & 21"×2 3/4"	17.32	90 to 125	18 × 48
SET-53	7.5	2	5" & 3"×3 1/2"26.40	26.40	90 to 150	18 ×58
SET-2345	10	2	5" & 2 3/4"×3 1/2"	37.82	90 to 175	18 × 72
SET-21T2	12.5	2	5 1/2" & 3"×4"	55.00	90 to 175	18 × 72
SET-6900	15	2	5 1/2" & 3"×4"	55.00	90 to 175	18 × 72
SET-75T	20	3	5" & 5" & 3 1/2"×4"	81.80	100 to 200	24 × 66
SET-75T	25	3	5" & 5" & 3 1/2"×4"	100.00	100 to 200	24 × 66
SET-2800	30	3	5 1/2" & 5 1/2" & 4"×4"	112.00	100 to 200	24 × 66

Note:

All technical specification, mentioned above, are approximate. In order to innovation and constant product up gradation, design and specifications are subject to change without prior notice and not binding on us.
