Hydraulic & Power Press Machine

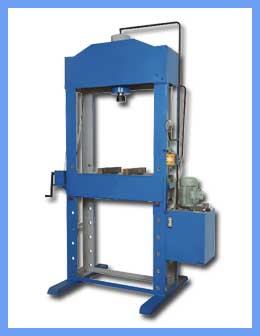

Technical Specification
Capacity in Ton	Distance Betweenn Column in M.M.	Distance Betweenn Ram to Bed M.M.	Travel of Hand Operated	Travel of Ram Power Operated	Motor H.P.
5	625×200	150×550	100	125	0.5
15	800×225	150×750	120	175	1
25	850×300	175×850	125	175	1.5
40	1000×400	175×1000	150	200	2
60	1050×450	175×1050	150	200	3
75	1200×450	180×1200	180	225	3
100	1275×525	180×1275	200	250	5
150	1375×625	200×1425	200	250	7.5
200	1450×730	200×1500	200	300	10

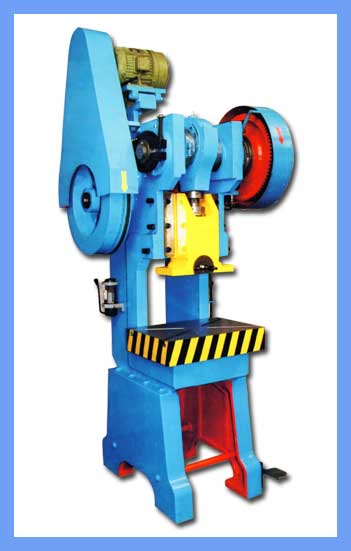

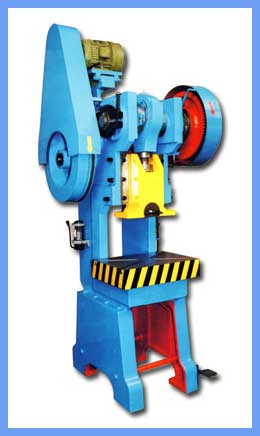

Technical Specification
Description	10 TONS	20 TONS	30 TONS	40 TONS	50 TONS	60 TONS	80 TONS	100 TONS	150 TONS	200 TONS	250 TONS
Crank Shaft Die	58	73	83	89	95	102S	114S	127	152	158	165
Stork Adjustment	6 To 50	10 TO 62	13 To 75	13 To 87	13 To 100	13 To 112	13 To 112	13 To 125	13 To 125	165	165
Slide Adjustment	40	50	50	50	50	60	60	60	60	70	70
Hole in Ram	25	32	38	40	51	51	51	55	60	63	63
Hole in Bed	70	89	102	115	127	127	127	191	200	216	229
Length & Width of Bed	381× 288	455× 250	508× 355	550× 375	650× 400	700× 425	750× 500	800× 650	88× 650	1016× 736	1067× 778
Dist Bed to Ram	203	230	266	300	350	350	450	450	450	519	544
H.P./R.P.M.	1/1440	2/1440	3/1440	3/1440	5/1440	5/1440	7.5/1440	10/1440	15/1440	20/1440	25/1440
Weight Approx. kg.	525	1100	1300	1600	2300	2600	3000	4500	5500	9100	11700

Note:

All technical specification, mentioned above, are aproximate. In order to innovation and constant product up gradation, design and specifications are subject to change without prior notice and not binding on us.
