Boring Honing Machine

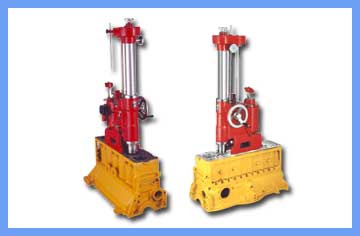

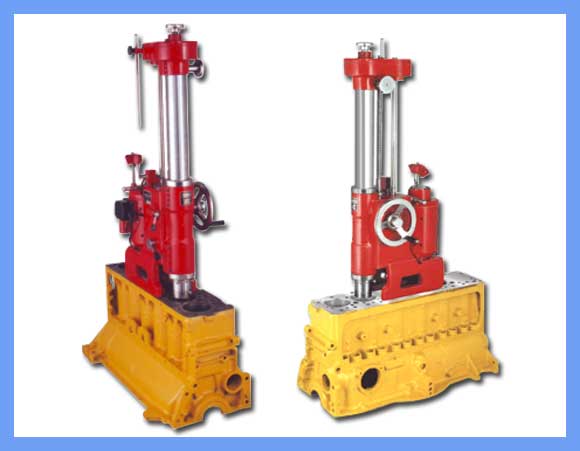

| Cylinder Block boring machine-model no. A-B |
| Model |
Bore Dia. |
Bore Length |
Spindle Speed |
Motor |
H.P. |
| A |
380 to 60 mm with stand |
155 mm(6.102") |
Single Speed |
1440 RPM Single Phase |
1/4 |
| B |
50 to 80 mm with stand |
180 mm(7.87") |
Single Speed |
1440 RPM Single Phase |
1/4 |
| Standard Attachment Contain Evik wood tool Box |
Model:A-B |
| Micrometer |
1 Piece |
| Holder for Sharpening |
1 Piece |
| Tool Holder |
4 Pieces |
| Centering Jaw |
4 sets |
| Boring Tool |
4 Pieces |
| Diamond Wheel |
1 Piece |
| Anchoring Device |
1 Piece |
| Hexagonal Wrench |
1 Piece |

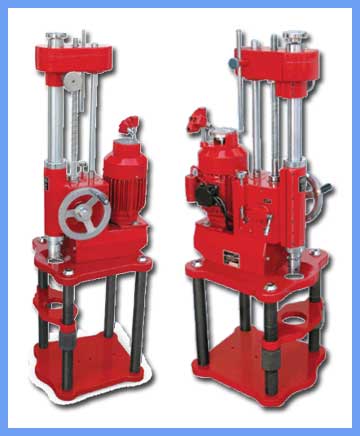

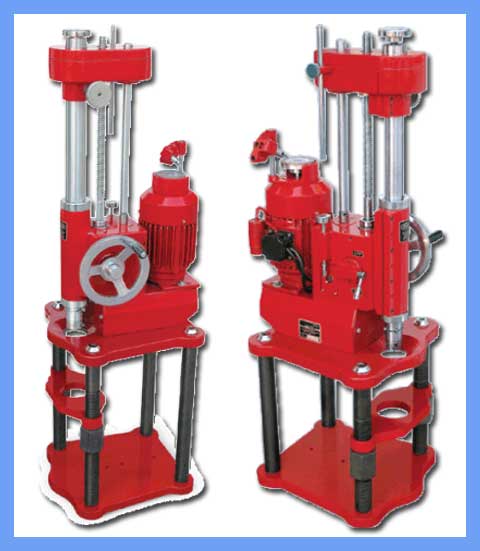

| Cylinder Block boring machine-model no. C-D |
| Model |
Bore Dia. |
Bore Length |
Spindle Speed |
Motor |
H.P. |
| C |
65 to 125 mm with stand |
275 mm(11") |
Single Speed |
1440 RPM Single Phase |
1/2 |
| D |
80 to 100 mm with stand |
275 mm(11") |
Single Speed |
1440 RPM Single Phase |
1/2 |
| Standard Attachment Contain Evik wood tool Box |
Model:A-B |
| Micrometer |
1 Piece |
| Holder for Sharpening |
1 Piece |
| Tool Holder |
5 Pieces |
| Centering Jaw |
6 sets |
| Boring Tool |
5 Pieces |
| Diamond Wheel |
1 Piece |
| Anchoring Device |
1 Piece |
| Hexagonal Wrench |
1 Piece |

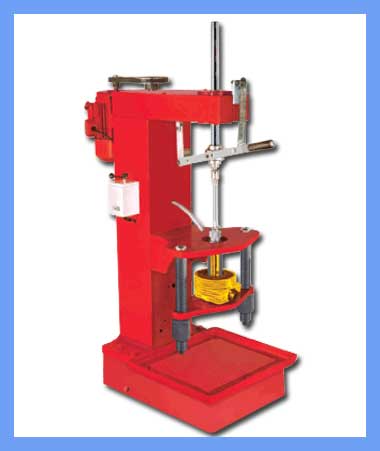

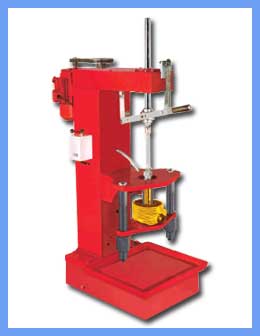

| Honing Machine - Model No. E(Hand Operated) |
| Model |
Bore Dia. |
Bore Length |
Spindle Speed |
Motor |
H.P. |
| E |
38 to 80 mm Honing Machine |
155 mm(11") |
Single Speed |
1440 RPM Single Phase |
1/4 |
| - |
With Coolant Pump |
- |
- |
Single Phase |
0.15 |

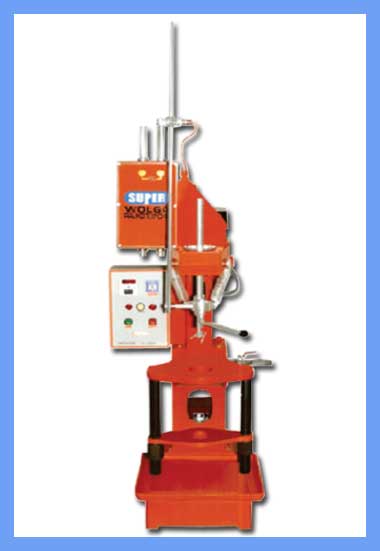

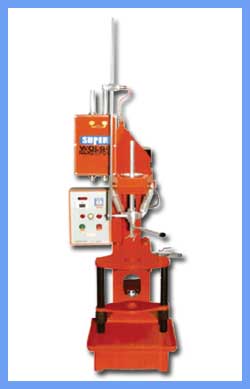

| Honing Machine - Model No. F(Auto Mechanism) |
automatic Honing Machine
(3 in 1 System) |
| Specification |
Remarks |
| Model |
F |
In Bore Dia. |
| Stroke Capacity |
175 mm |
In Length |
| Speed |
Single |
|
| Ele. Motor |
Phase-1, H.P.-1 |
1440 R.P.M. |
| Kero Pump |
Phase-1, H.P.-0.25 |
1440 R.P.M. |
Note:
For better modification specification and design will be change without notice and not binding on us.
