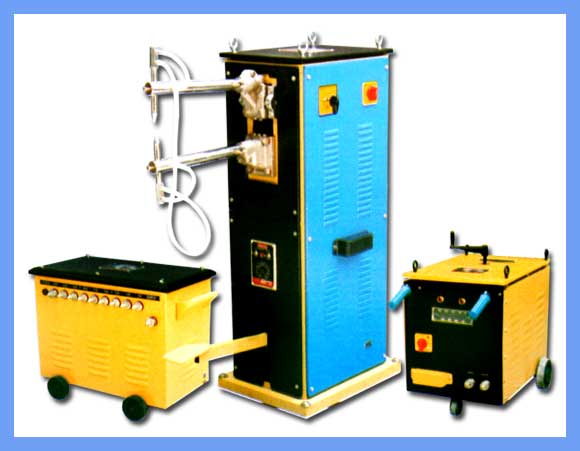

Arc Welding Transformers

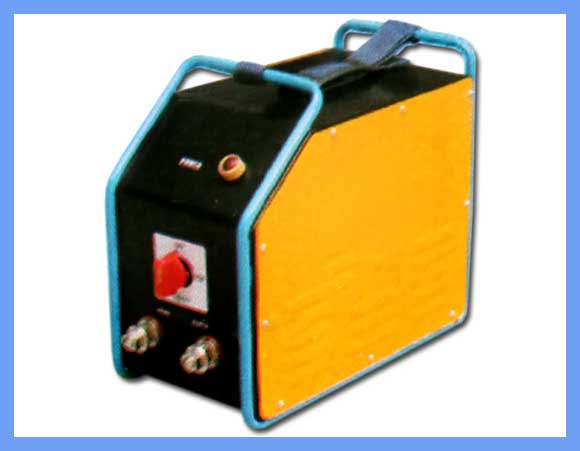

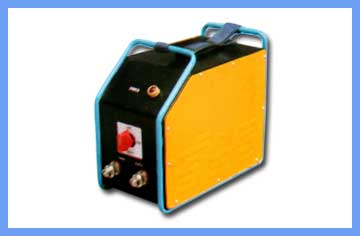

Portable (Stud Type) Welding Air Cooled Models Insulation Class - A
A/C Amps.	Stud Type O.C..V.	Aluminium Windidg	100% Copper Winding	Range of Electrode Size
		230 Volts 1 Phase	230 Volts 1 Phase	S.W.G.	mm.
120 A	50	-do-	-do-	14 - 12	2.03/2.64
150 A	50	-do-	-do-	12 - 10	2.64/3.25
200 A	50	-do-	-do-	12 - 10	2.64/3.25

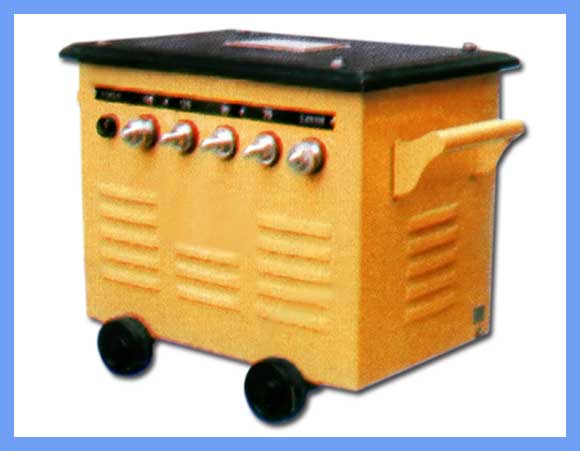

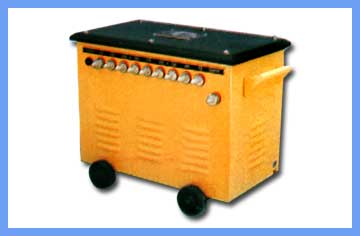

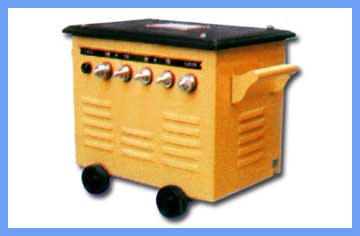

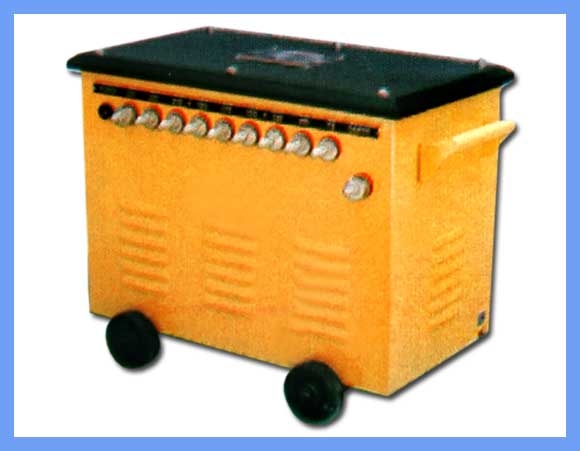

Mini (Stud Type) Welding Air Cooled & Oil Cooled Models Insulation Class - A
A/C Amps.	Stud Type O.C..V.	Aluminium Windidg	100% Copper Winding	Range of Electrode Size
		1 & 2 Phase	1 & 21 Phase	S.W.G.	mm.
150 A	50	-do-	-do-	14 - 12	2.03/3.25
200 A	50	-do-	-do-	12 - 10	2.64/3.25
250 A	50	-do-	-do-	12 - 8	2.64/4.06
300 A	60	-do-	-do-	12 - 8	2.64/4.06
400 A	60	-do-	-do-	10 - 6	3.25/4.88
Extra Charge will be taken on Oil Cooled Model (Without oil)

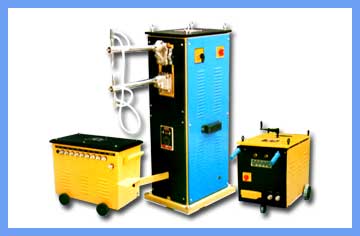

Heavy Duty Model Pedestal Type Spot Welding Machine 100% Copper Insulation Class - A
K.V.A.	Brass Rods Size	Without Timer		Without Timer		welda Bility Size
		1 & 2 Phase	2 Phase	1 & 2 Phase	2 Phase	S.W.G.	mm.
RE - 8	1 1/2" × 18"	-do-	-do-	-do-	-do-	36 - 16	0.19/1.63
RE - 10	1 1/2" × 18"	-do-	-do-	-do-	-do-	34 - 14	0.23/2.03
RE - 12	1 1/2" × 18"	-do-	-do-	-do-	-do-	32 - 12	0.27/2.64
RE - 15	1 1/2" × 18"	-do-	-do-	-do-	-do-	30 - 10	0.32/3.25
RE - 20	2" × 18"	-do-	-do-	-do-	-do-	30 - 9	0.32/3.66

Heavy Duty Double Holder (regulator Type) Welding(moving) Models Insulation Class - A
A/C Amps.	Stud Type O.C..V.	Aluminium Windidg	100% Copper Winding	Range of Electrode Size
		2 Phase	230 Volts 1 Phase	S.W.G.	mm.
300 A	60	-do-	-do-	12 - 8	2.64/4.06
400 A	60	-do-	-do-	12 - 6	2.25/4.88
200 A	50	-do-	-do-	12 - 10	2.64/3.25

Note:

All technical specification, mentioned above, are approximate. In order to innovation and constant product up gradation, design and specifications are subject to change without prior notice and not binding on us.
