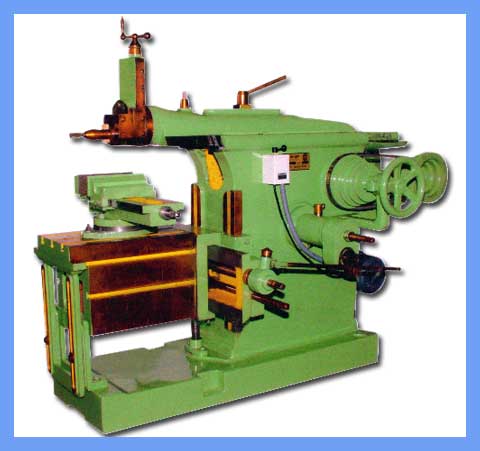

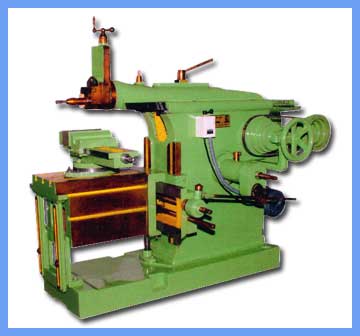

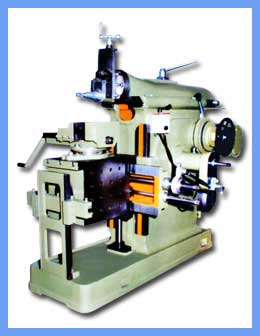

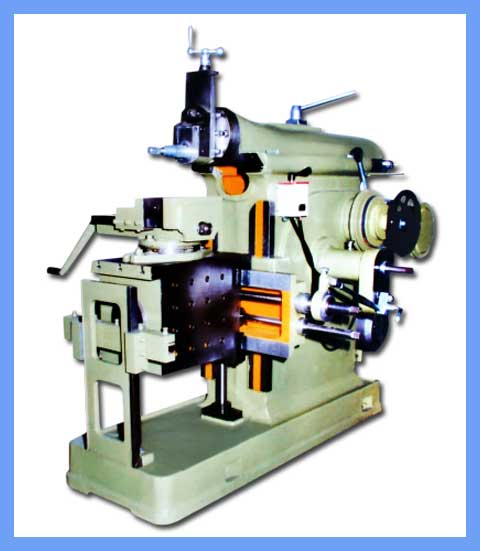

Shapping Machine
| Particulars |
MM |
Inch |
| Length of Stroke |
355 |
14 |
| Length of ram without foot slide |
660 |
26 |
| Length of cross slide |
558 |
22 |
| Width of cross slide |
203 |
8 |
| Horizontal travel of the table |
444 |
17.5 |
| Vertical travel of the table |
218 |
8.6 |
| Max. Distance from table to ram |
342 |
13.5 |
| Min. Distance from table to ram |
127 |
5 |
| Working capacity of tool holders-size |
101 |
4 |
| Overall diemension |
1092×736×1270 |
43×29×50 |
| Range of speed |
96-72--48-36 |
| Electric motor required |
1H.P. 1440 rpm |
 |
| Particulars |
MM |
Inch |
| Length of Stroke |
480 |
18 |
| Length of Ram |
970 |
38 |
| Length & Width of ram bearing |
660 × 250 |
26 × 10 |
| Max. & Min. distance from table to ram |
475 × 60 |
18 5×2 |
| Working Surface of table |
|
19.5 × 12.5 |
| Maximum table travel horizontal |
610 |
24 |
| Maximum table travel vertical |
430 |
17 |
| Angular movement of table on either side |
90-L;90-R |
| Max. vertical travel of tool slide |
178 |
7 |
| Max. Swivel of tool head |
90-L; 90-R |
| Range of ram speed |
4 speed |
| Length & Width of base |
1320 × 483 |
52 × 19 |
| Range of tool head feed |
Hand feed |
| Main drive motor(3 phase) |
2 H.P.(960 rpm) |
| V-belt section |
B-57 |
| main switch starter(Push Button type) |
5 AMP Mini Doll Starter |
| overall Dimension |
1730×940×1550 |
68×43×61 |
 |
| Particulars |
MM |
Inch |
| Length of Stroke |
610 |
24 |
| Length of Ram |
1041 |
41 |
| Length & Width of ram bearing |
736 × 255 |
29 × 10 |
| Max. & Min. distance from table to ram |
457 × 77 |
18 × 3 |
| Working Surface of table |
495 × 318 |
19.5 × 12.5 |
| Maximum table travel horizontal |
610 |
24 |
| Maximum table travel vertical |
430 |
17 |
| Angular movement of table on either side |
90-L;90-R |
| Max. vertical travel of tool slide |
178 |
7 |
| Max. Swivel of tool head |
90-L; 90-R |
| Range of ram speed |
4 speed |
| Length & Width of base |
1320 × 483 |
52 × 19 |
| Range of tool head feed |
Hand feed |
| Main drive motor(3 phase) |
2 H.P.(960 rpm) |
| V-belt section |
B-57 |
| main switch starter(Push Button type) |
5 AMP Mini Doll Starter |
| overall Dimension |
1730×940×1550 |
68×43×61 |
Note:
All technical specification, mentioned above, are approximate. In order to innovation and constant product up gradation, design and specifications are subject to change without prior notice and not binding on us.
