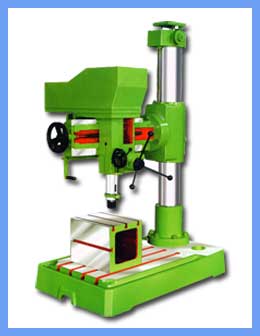

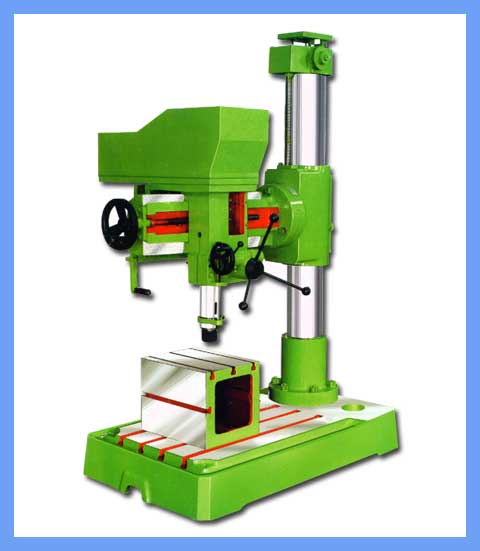

Technical Specifications Radial Drilling Machine
Model No.	40-R. & 40-R.A.	25-R.
Drilling Capacity in Mild Steel	40	25
No. of Spindle Speeds 8	50 To 1735	90 To 2600
Working Area of Base	870 × 760	725 × 600
Dia of Column	165	127
Dia of Ram	78	72
Spindle Travel	260	225
Spindle Nose	M.T.4	M.T.3
Max. Min. Distance Spindle Nose to Base	925 To 230	750 To 175
Max. Min. Distance Spindle Nose to Base	620	570
Max. Min. Distance Spindle Center to Column	875 × 360	665 × 270
Size of Box Table	305 × 305 × 380	205 × 205 × 285
Size of Base(L×W×H)	760 × 1290 × 190	600 × 1000 × 150
Overall height of Machine	2000	1420
Spindle Feed By	Hand star Lever & Worm	Hand star Lever & Worm
Drill Head Motor	1.5 HP, 960 RPM	1 HP, 1440 RPM
Elevating Motor	0.5 HP, 1440 RPM	0.5 HP, 1440 RPM
Net Weight	900 kg.	485 kg.
B. Belt	B-46	B-40
Lifting Vee Belt	A-23	A-20
Number of Autofeed	05. (40-R.A.)	-

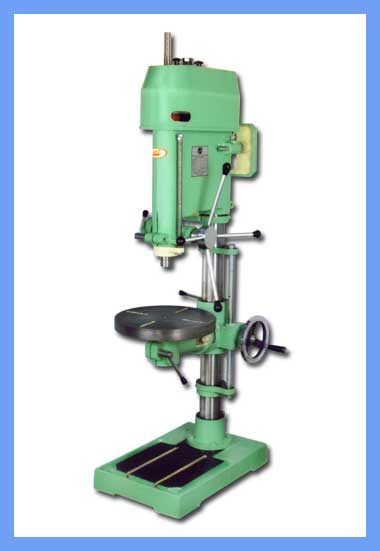

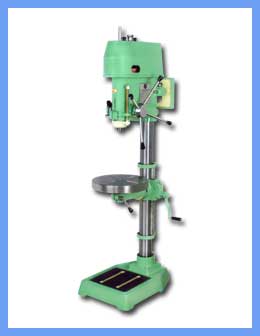

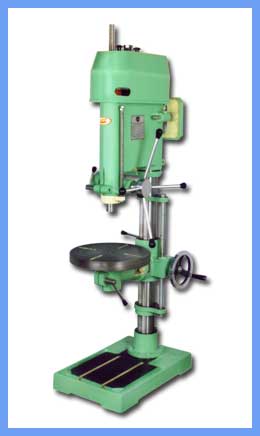

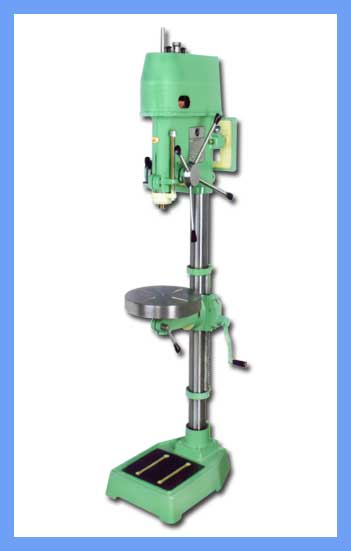

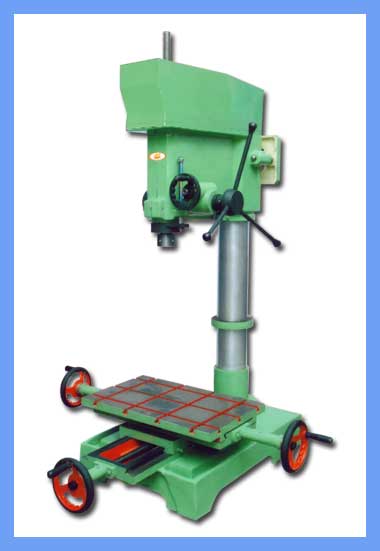

Technical Specifications Pillar Type Drilling Machine
Description	PD 19 mm	PD 25 mm Medium	PD 25 mm	PD 38 mm
Drilling Capacity in M.S.	19 mm	25 mm	25 mm	38 mm
Column Diameter	74 mm	74 mm	87 mm	133 mm
Spindle Nos to Table Distance	600 mm	600 mm	650 mm	525 mm
Spindle Nos to Base Distance	900 mm	870 mm	1050 mm	900 mm
Spindle Center to Pillar Face	200 mm	220 mm	250 mm	380 mm
Table Travel	380 mm	570 mm	560 mm	450 mm
Spindle Hole Taper	MT 2	MT 3	MT 3	MT 4
Spindle Speeds(RPM × Steps)	86-3067 × 8	95-1850 × 6	73-1800× 8	720-2000 × 8
Table Size	280 mm	335 mm	380 mm	520 × 520 mm
Base size Machine area	250 × 250mm	315 × 330 mm	320 × 355 mm	400 × 425 mm
overall Base Size	315 × 450 mm	330 × 490 mm	400 × 610 mm	540 × 800 mm
Spindle Travel	120 mm	200 mm	230 mm	200 mm
Column Length	1200 mm	1200 mm	1450 mm	1450 mm
Overall Height with Pulley Guard	1400 mm	1560 mm	1730 mm	1850 mm
V Belt Section(Size)	A 44	B 46	B 53	B 72
Weight(Approx)	100 kg.	130 kg.	210 kg.	440 kg.
Motor	1 H.P.	1 H.P.	1 H.P.	1.5 H.P.

Note:

All technical specification, mentioned Above, are approximate. In order to innovation and Constant product up gradation, design and specification are subject to change without prior notice and not binding on us.
