All Geared Lathe Machine

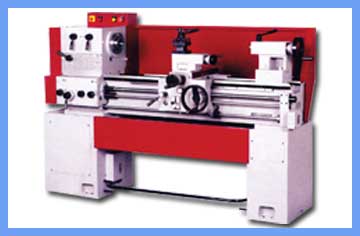

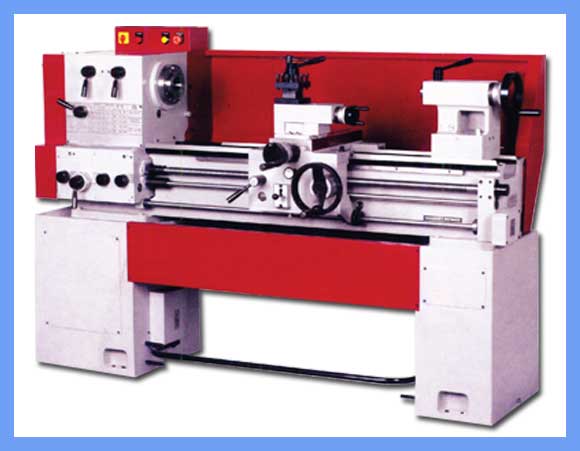

Technical Specification
Admit between Centers	750	1000	1500
Height of Center	200 / 250
Swing over Bed Die.	400 / 500
Swing Over Cross Slide Die.	200 / 350
Bed Type	2V & 2 Flat
Bed Width	302
Nos. of Spindle Speeds/Range	8 / 70-1600 RPM
Spindle Nose Type	A2-6
Taper Bore in Spindle Sleeve	Mt-3
Spindle Bore	55
Tail Stock Spindle Diameter	54
Taper Bore in Tail Stock Spindle	MT-3
Tail Stock Spindle Travel	140
Travel of Stool Slide	100
Tool Shank Section	25 × 25
Movement of Cross Slide	225
Longitudinal Feed: Nos. / Range	24/0.045-0.63 mm/rev.
Transverse Feed: Nos. / Range	24/0.015-0.21 mm/rev.
Metric Threads: Nos. / Range	24/0.5-7 MMP
Inch Threads: Nos. / Range	24/4-56 TPI
Main Motor: 200CH / 250CH	2.2w(3HP)/3.7kw(5HP)
Power Supply	AC, 415V, 3 Phase, 50Hz
Net Weight in Kgs.	100	1300	1500

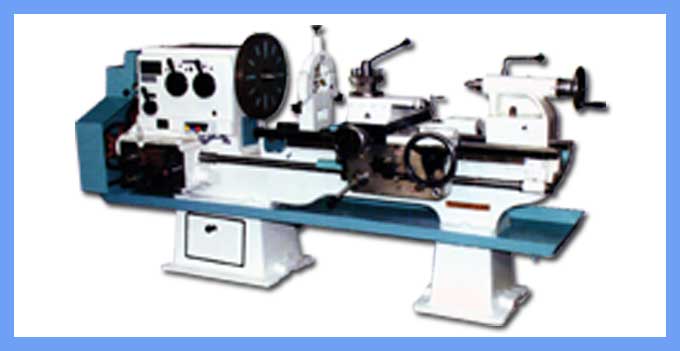

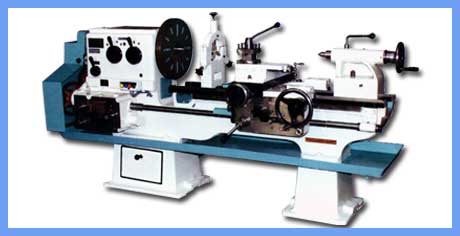

Technical Specification
ALength of Bed & Admit between Centers	5'6-555 7'-1015 9'-1625	10'-1925 12'-2535 14'-314
Height of Center	254(10")&305(12")
Swing over Bed Die.	480(19")&580(23")
Swing Over Cross Slide Die.	285(11")&38(15")
Bed Type	2V & 2 Flat
Bed Width	12-3/4"&14-3/4"
Width of Gap in front of Face Flat	205(8")
Nos. of Spindle Speeds/Range	8 / 30-123 RPM
Spindle Nose Type	Threaded, 6 TPI(opt. A2-6)
Taper Bore in Spindle Sleeve	MT-4
Spindle Bore	53(2-1/8")
Tail Stock Spindle Diameter	53(2-1/8")
Taper Bore in Tail Stock Spindle	MT-4
Longitudinal Feed: Nos. / Range	40/0.08-2.4 mm/rev.
Transverse Feed: Nos. / Range	40/0.019-0.57 mm/rev.
Metric Threads: Nos. / Range	20/1-1 MMP
Inch Threads: Nos. / Range	35/2-30 TPI
Lead Screw Die. / Pitch	38/4 TPI
Main Motor	3.2kw(3 HP)
Power Supply	AC, 415V, 3 phase, 50Hz

Note:

All technical specification, mentioned Above, are approximate. In order to innovation and Constant product up gradation, design and specification are subject to change without prior notice and not binding on us.
