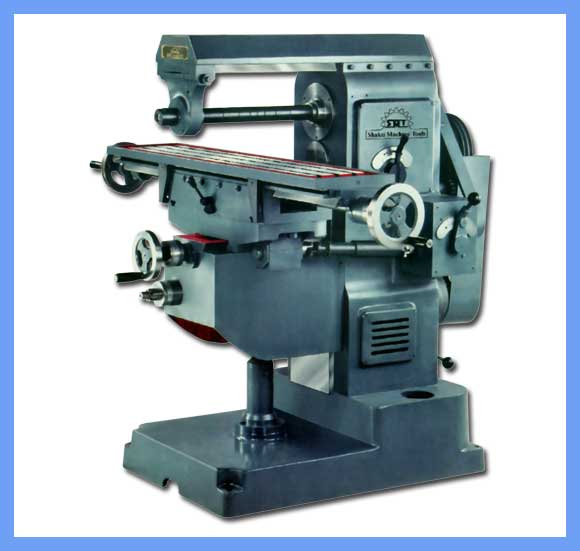

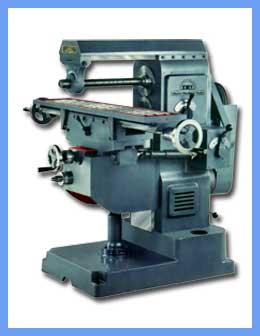

Milling Machine

Specifications
Surface working	1050 × 250mm
Number of T-Slots	3
Width of T-Slots	15 mm
Pitch of T-Slots	62 mm
maximum Distance from Spindle Center to Underside of Over Support	125 mm

Movements
longitude movement of the table by lever / screw	600 mm
Cross movement of the table nt screw	230 mm
Vertical Movement of the table by screw	450 mm

Milling Spindle
Spindle Bore	17 mm
Inside Taper	ISO - 40
Arbor	25.4 mm

Revolution of Milling Spindle
Number of Spindle Speed	6
Range of Spindle Speed	50, 85, 110, 240, 350, 525 RPM
Number of Feeds	3 feeds(0.9, 1.4, 2.25 per Minute)

Electrical
Main Drive Electric Motor	2 HP, 1440 RPM, 440 V, 3 Phase
Coolant Motor	0.11 KW 2700 RPM

Other Dimension
Floor Space	550 × 925 mm
Height	1500 mm
Coolant Tank Capacity	20 Ltr.

Note:

All technical specification, mentioned above, are approximate. In order to innovation and constant product up gradation, design and specifications are subject to change without prior notice and not binding on us.
