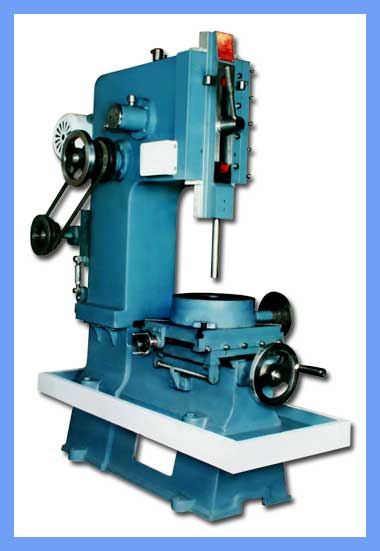

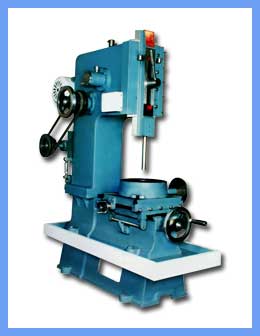

Slotting Machine
| Working Stroke |
150 mm |
| Max. Diameter Accommodated |
350 mm |
| Longitude |
75 mm |
| Surface Table Size |
290 × 290 mm |
| Cross Ttraverse |
100 mm Table |
| Electric Motor |
1 HP × 1440 rpm 3 Phase |

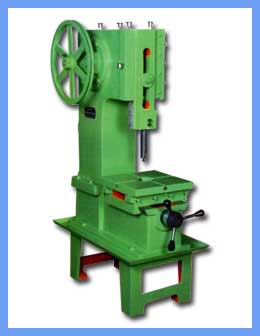

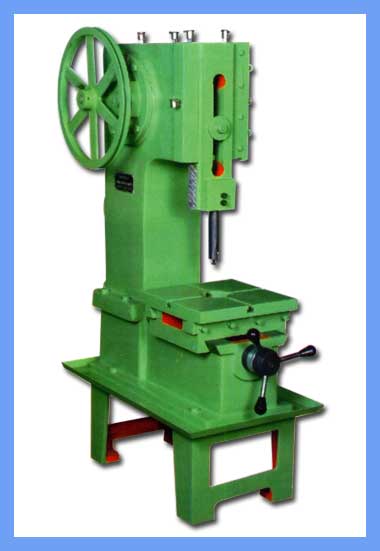

| Model |
GMT-150 |
GMT-250 |
| Adjustable Stroke |
10 mm to 150 mm |
10 mm to 250 mm |
| Longitude Movement |
200 mm |
230 mm |
| Cross Movement |
110 mm |
230 mm |
| Speed Adjustment |
3 Speed |
3 Speed |
| Ram Adjustment |
150 mm |
250 mm |
| Electric Motor |
1 H.P. |
1.5 H.P. |
| A |
210 mm |
330 mm |
| B |
310 mm |
410 mm |
| C |
280 × 280 mm |
280 &tim 335 mm |
| Extra Equipment |
1. Rotary Table with 36:1
Ratio Diameter 250 mm |
| 2. Electric Motor |
| 3. Switch |
| 4. True Chuck |
| 5. V-Belt |
| Standard Equipment |
| Boring Bar |
| Motor Pulley |
Note:
All technical specification, mentioned above, are approximate. In order to innovation and Constant product up gradation, design and specifications are subject to change without prior notice and not binding on us.
